DL-02S Speedometer

DISCONTINUED PRODUCT
reference and instructions only

 Specifications
(R= Range U=Unit)

  • Speedometer
    Display range: 0~260 km/h or 0~160 MPH
    Display unit: km/h or MPH
  • Display internal
    < 0.5 Second RPM
  • Odometer
    Display range: 0~99999 km or mile
    Reset automatically after 99999 km or mile
    Display unit: 1 km or mile
  • Trip meter
    Display range: 0~999.9 km or mile
    Reset automatically after 999.9 km or mile
    Display unit: 1 km or mile
  • The circumference setting
    Setting range: 300~2,500 mm
  • Setting unit: 1 mm
    Pulse setting: 1~60
  • Top speed record
    Display range: 0~260 km/h or 0~160 MPH
  • AVE speed
    Display range: 0~260 km/h or 0~160 MPH
  • Riding time
    Setting range: 0~99’59″99 second.
  • Fuel meter
    Display range: 0%~100%
    Setting range: 100 Ω , 510 Ω, no display
  • Supply voltage
    DC 12V
  • Effective temperature range
    -10 ~ 60ºC (14 ~ 140ºF)
  • Meter standard
    JIS D 0203 S2

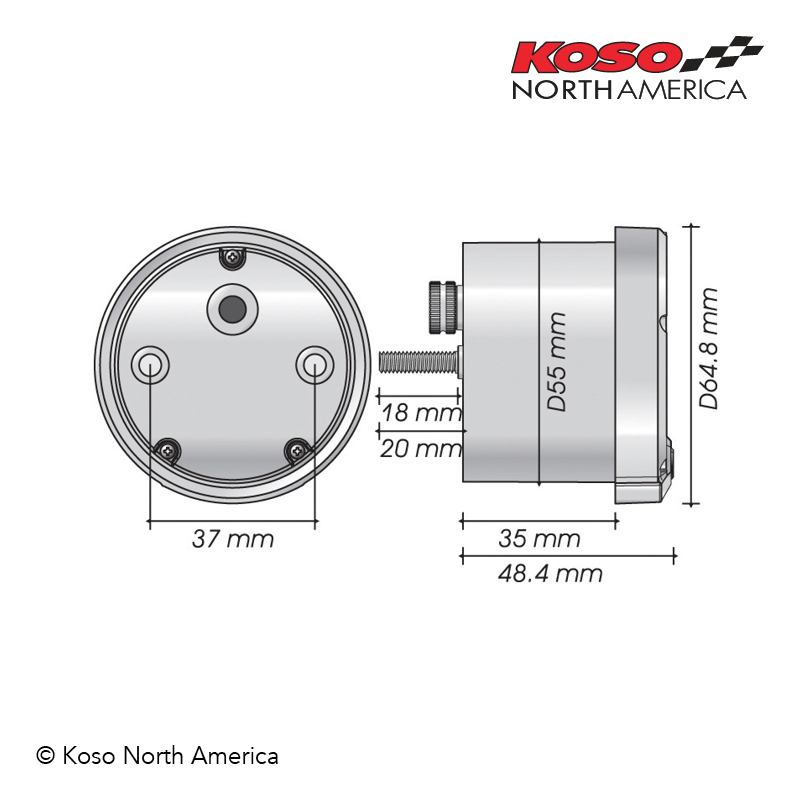

  • Meter size (DxH)
    D55 x 48.4 mm
  • Sensor type Passive speed sensor :
    BF019J06
