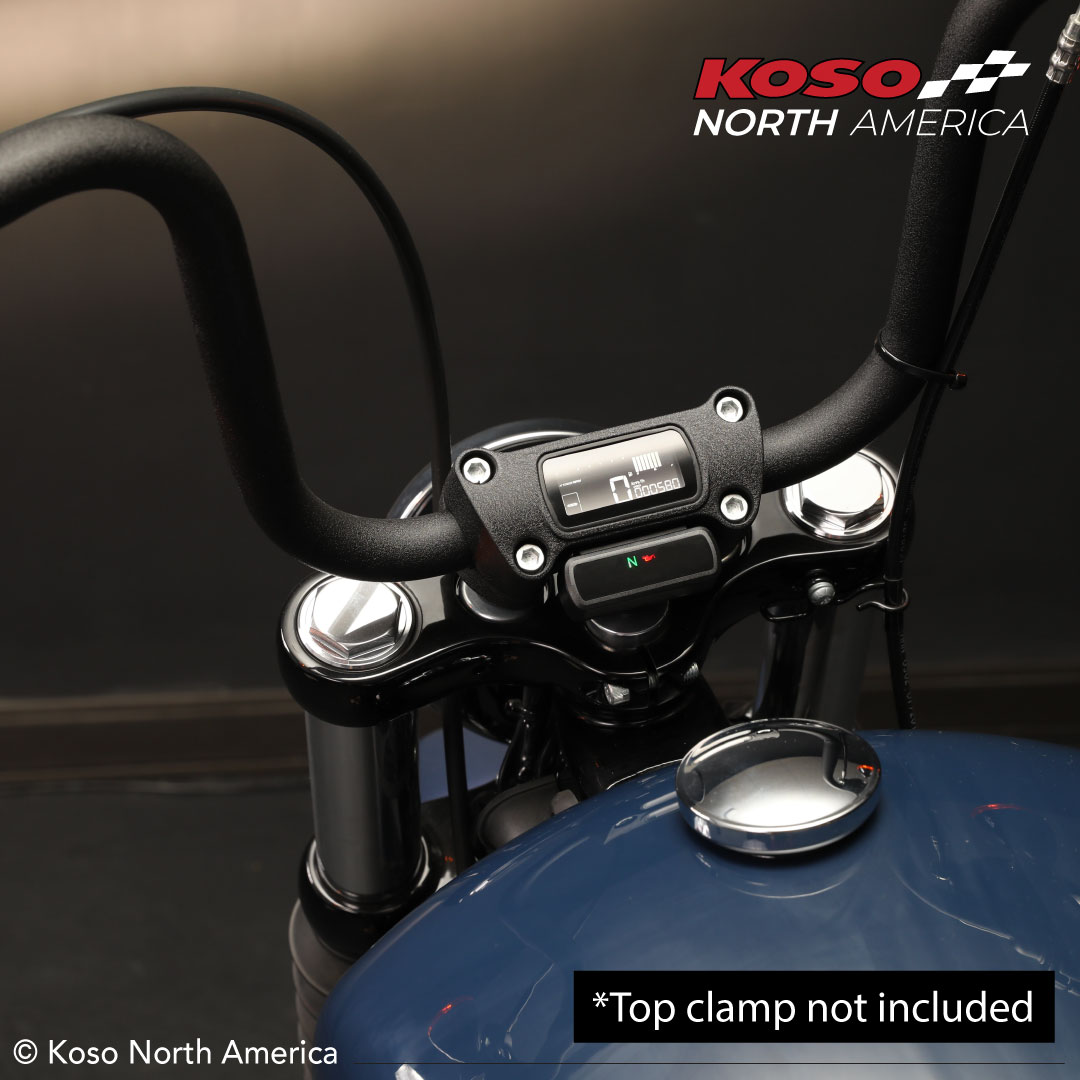

D2 | Multifunction meter for Harley-Davidson®

(for 2018+ Street bob)

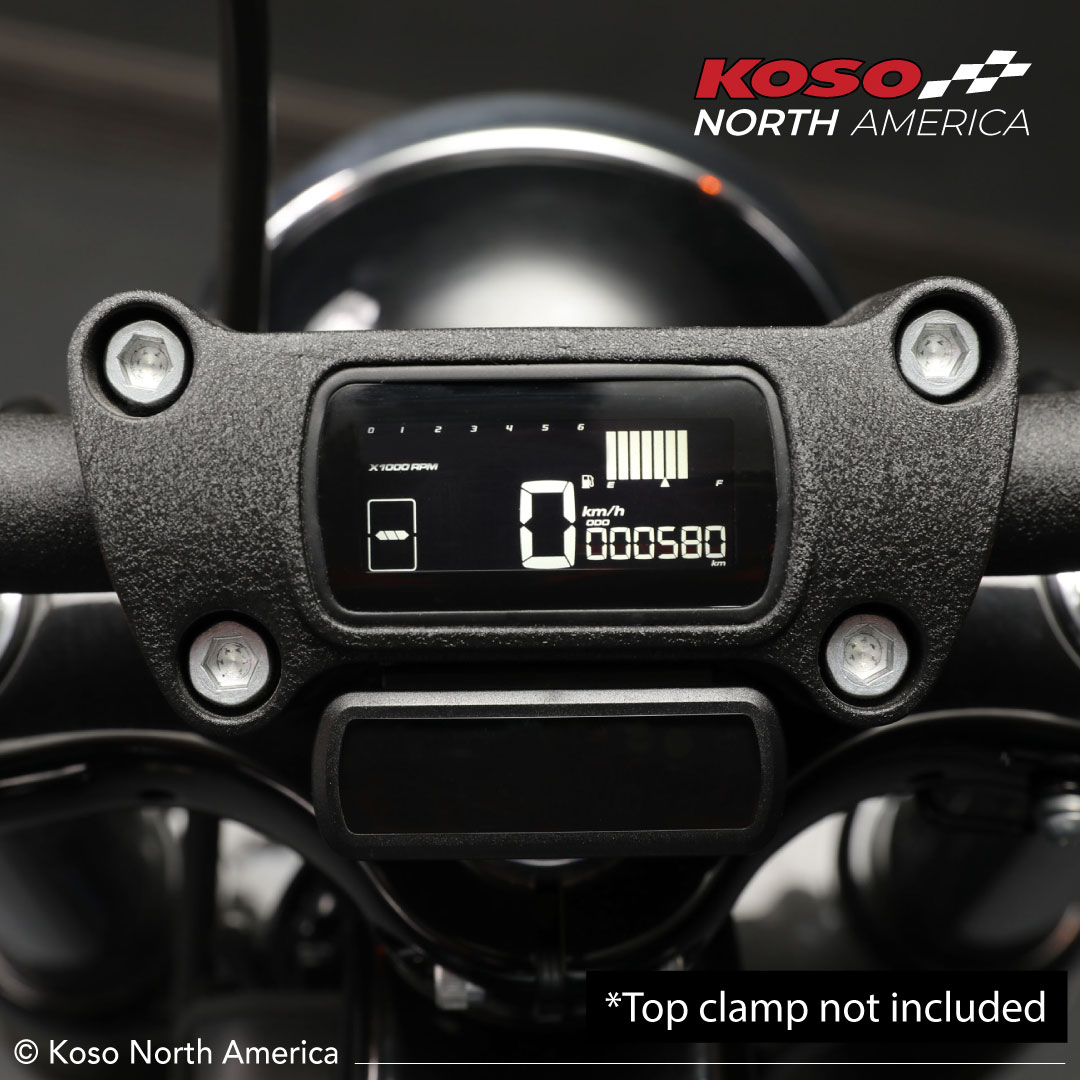

You can now customize your Street Bob with our new high quality 100% plug & play meter that is equipped with an 8-color changeable LCD display. This gauge features a tach and speedo combo with a programmable shift light and includes a gear indicator for easily seeing what gear you’re in.

This gauge also features vital readings such as engine temperature, battery voltage, tire pressure and a complete system of indicator lights to monitor your bikes vital signs. This gauge will fit directly into the stock harness and works directly with your bikes CANBUS system.

 Specifications
(R= Range U=Unit)

  • Speedometer
    R: 0~199 km (0~124 mile) switchable
    U: 1 km (mile)
  • Display interval
    <0,5 second
  • Internal and external odometer
    R: 000,000 ~ 999,999 km (mile) returns to zero upon exceeding
    U: 0,1 km (mile)
  • Trip meter A,B
    R: 0,000,0 ~ 9,999,9 km (mile) returns to zero upon exceeding
    U: 0,1 km (mile)
  • Tire circumference
    R: 50 ~ 210 %
    U: 1 %
  • Tachometer
    R: 0 ~ 10,000 RPM
    • Backlight color
      R: white, red, orange, yellow, blue, light blue, purple, green
    • Mileage maintenance
      R: Off, 500 ~ 16,000 km (300 ~ 10,000 mile)
      U: 100 km (miles)
    • Indication light
      R: Right indication light (Green)Security light (Red) ABS light (Amber) Motor oil light (Red)Neutral light (Green) High beam light (Blue) Low fuel warning light (Amber) Left indication light (Green) Fog light (Green) Battery discharge light (Red) Engine light (Amber) Cruise light (Green/Amber)  Tire pressure warning light (Amber)
  • Shift light warning
    R: 2,000 ~ 10,000 RPM
    When it is higher than the setting value (including),
    the backlight will blink in re and white as a warning
    U: 100 RPM
  • Engine temperature
    R: -38 ~ 572 °F (-39 ~ 300 °C)
  • Clock
    R: 12 / 24 hour format
  • Voltmeter
    R: 8 ~ 18 V
  • Backlight brightness
    R: 1/5 (darkest) ~ 5/5 (brightest)
  • Meter weight
    Around 70g
    • Tire pressure
      (TPMS, FR/RR/LR shall be displayed when the vehicle supports TPMS)
      R:
      —, HI, 0 ~ 73 PSI, 0~506 kPa, 0,0~5,0 bar
      U: 1 PSI, 1 kPa, 0,1 bar
    • Fuel Meter
      R: 10 levels
    • Operating voltage
      DC 12 V
    • Operating temperature
      -20 ~ 85 °C
    • Storage temperature
      -30 ~ 90 °C
    • Specifications
      JIS D 0203 (S2)
    • Meter size
      88,2 x 67,0 x 35,2 mm

$309.95 CAD

In stock

Part number
