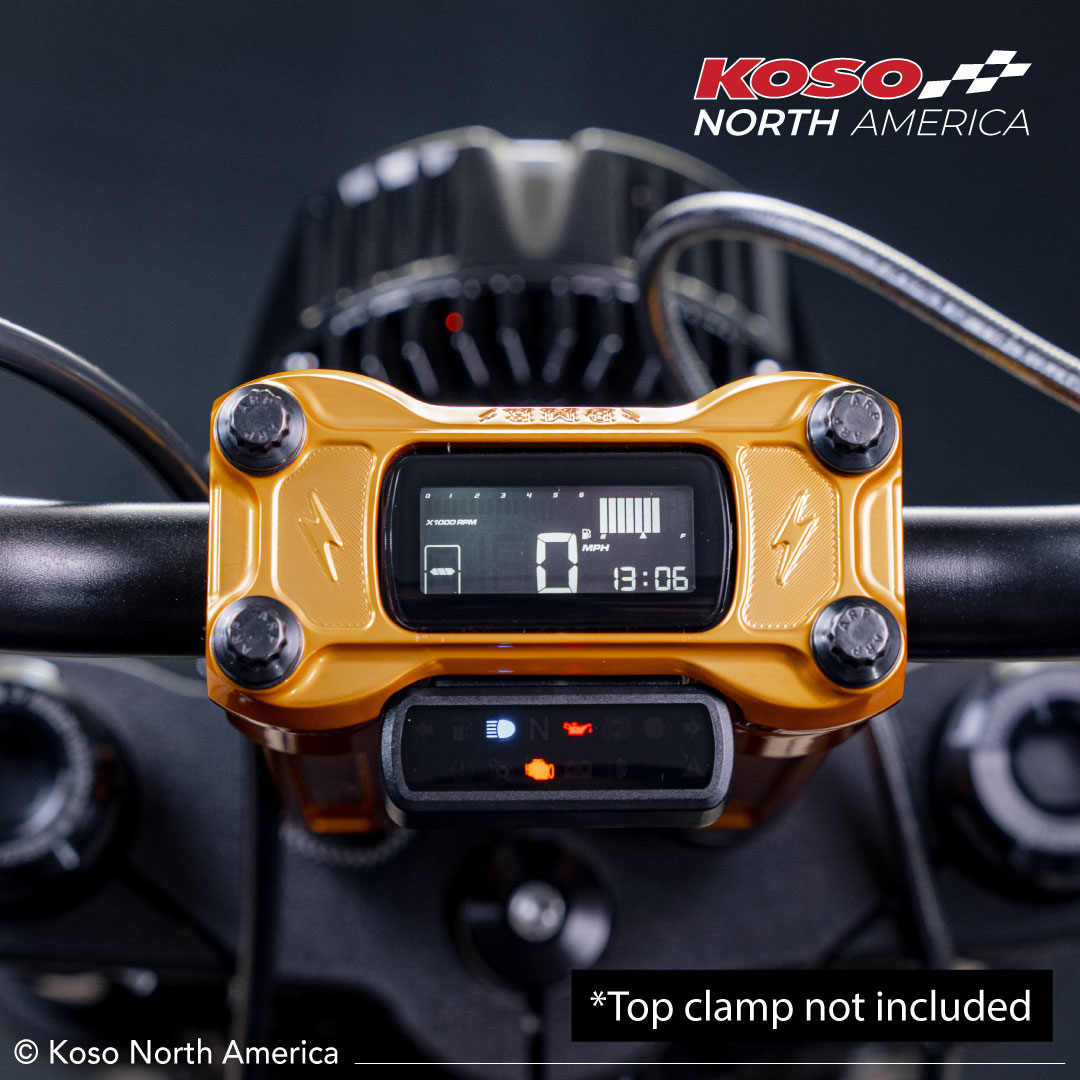

Whether you have a Dyna, Softail, Sportster or Roadking model, this new D2 plug and play multifunction meter will provide you vital readings such as engine temperature, battery voltage, tire pressure and a complete system of indicator lights to monitor your bike’s vital signs. This gauge will fit directly into the stock harness and work with your bike’s CANBUS system.
It also features a tach and speedo combo with a programmable shift light, a gear indicator for easily seeing what gear you’re in and an 8-color changeable LCD display.
Specifications
(R= Range U=Unit)
- Speedometer
R: 0~199 km (0~124 mile) switchable
U: 1 km (mile) - Display interval
<0,5 second - Internal and external odometer
R: 000,000 ~ 999,999 km (mile) returns to zero upon exceeding
U: 0,1 km (mile) - Trip meter A,B
R: 0,000,0 ~ 9,999,9 km (mile) returns to zero upon exceeding
U: 0,1 km (mile) - Tire circumference
R: 50 ~ 210 %
U: 1 % - Tachometer
R: 0 ~ 10,000 RPM - Backlight color
R: white, red, orange, yellow, blue, light blue, purple, green - Mileage maintenance
R: Off, 500 ~ 16,000 km (300 ~ 10,000 mile)
U: 100 km (miles) - Indication light
R: Right indication light (Green) / Security light (Red) ABS light (Amber) / Motor oil light (Red)Neutral light (Green) / High beam light (Blue) / Low fuel warning light (Amber) / Left indication light (Green) / Battery discharge light (Red) / Engine light (Amber) / Cruise light (Green/Amber)
- Shift light warning
R: 2,000 ~ 10,000 RPM
When it is higher than the setting value (including),
the backlight will blink in re and white as a warning
U: 100 RPM - Engine temperature
R: -40 ~ 572 °F (-40 ~ 300 °C) - Clock
R: 12 / 24 hour format - Voltmeter
R: 8 ~ 18 V - Backlight brightness
R: 1/5 (darkest) ~ 5/5 (brightest) - Meter weight
± 70g - Fuel Meter
R: OFF, Sportster fuel volume switch original fuel kit (PN 6120008A), Dyna, CUST (User define) - Operating voltage
DC 12 V - Operating temperature
-20 ~ 85 °C - Storage temperature
-30 ~ 90 °C - Specifications
JIS D 0203 (S2) - Meter size
88,2 x 67,0 x 35,2 mm
