(for Baggers 2014-2023)

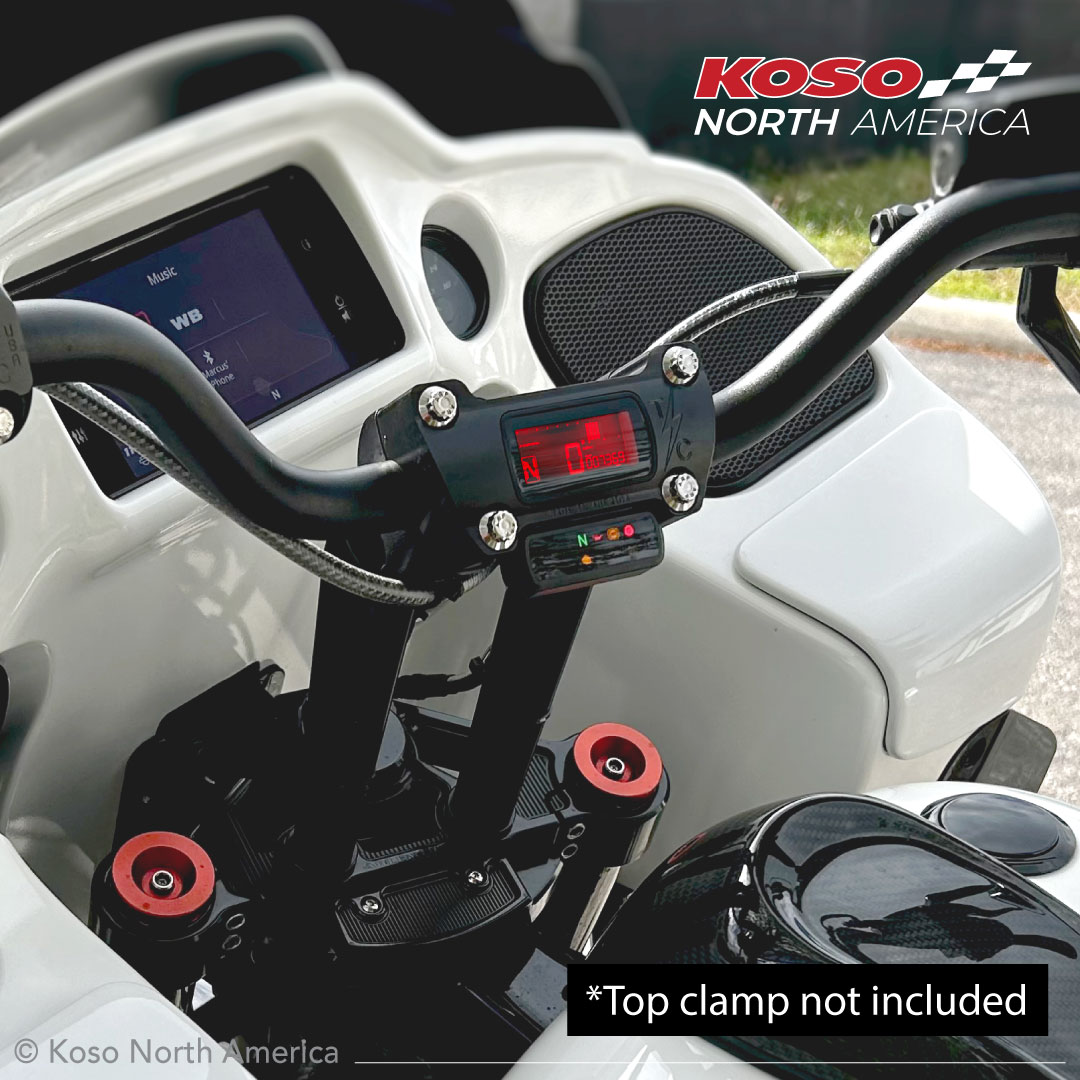

Equipped with an 8-color changeable LCD display, the new plug and play D2 meter for Baggers features a tach and speedo combo with a programmable shift light and includes a gear indicator for easily seeing what gear you’re in.
This gauge also features vital readings such as engine temperature, battery voltage, tire pressure and a complete system of indicator lights to monitor your bike’s vital signs. This gauge will fit directly into the stock harness and works directly with your bike’s CANBUS system.
*To access settings on CVO models, you must turn ON the run/stop switch so that the bike will not turn off. Then you can make your adjustments to the settings on the gauge.
Specifications
(R= Range U=Unit)
- Speedometer
R: 0~199 km (0~124 mile) switchable
U: 1 km (mile) - Display interval
<0,5 second - Internal and external odometer
R: 000,000 ~ 999,999 km (mile) returns to zero upon exceeding
U: 0,1 km (mile) - Trip meter A,B
R: 0,000,0 ~ 9,999,9 km (mile) returns to zero upon exceeding
U: 0,1 km (mile) - Tire circumference
R: 50 ~ 210 %
U: 1 % - Tachometer
R: 0 ~ 10,000 RPM
- Backlight color
R: white, red, orange, yellow, blue, light blue, purple, green - Mileage maintenance
R: Off, 500 ~ 16,000 km (300 ~ 10,000 mile)
U: 100 km (miles) - Indication light
R: Turn signal / Water temp / Oil pressure / Photometric sensing / Warning light/ Check engine / High Beam / Fog light / Volt / Traction control / Cruise / ABS / Rain mode / Vehicle hold control / Fuel level / Low tire pressure / Security light
- Shift light warning
R: 2,000 ~ 10,000 RPM
When it is higher than the setting value (including),
the backlight will blink in re and white as a warning
U: 100 RPM - Engine temperature
R: -38 ~ 572 °F (-39 ~ 300 °C) - Clock
R: 12 / 24 hour format - Voltmeter
R: 8 ~ 18 V - Backlight brightness
R: 1/5 (darkest) ~ 5/5 (brightest) - Meter weight
Around 70g
- Tire pressure
(TPMS, FR/RR/LR shall be displayed when the vehicle supports TPMS)
R:—, HI, 0 ~ 73 PSI, 0~506 kPa, 0,0~5,0 bar
U: 1 PSI, 1 kPa, 0,1 bar - Fuel Meter
R: 10 levels - Operating voltage
DC 12 V - Operating temperature
-20 ~ 85 °C - Storage temperature
-30 ~ 90 °C - Specifications
JIS D 0203 (S2) - Meter size
88,2 x 67,0 x 35,2 mm
