(for Baggers 2014-2023)

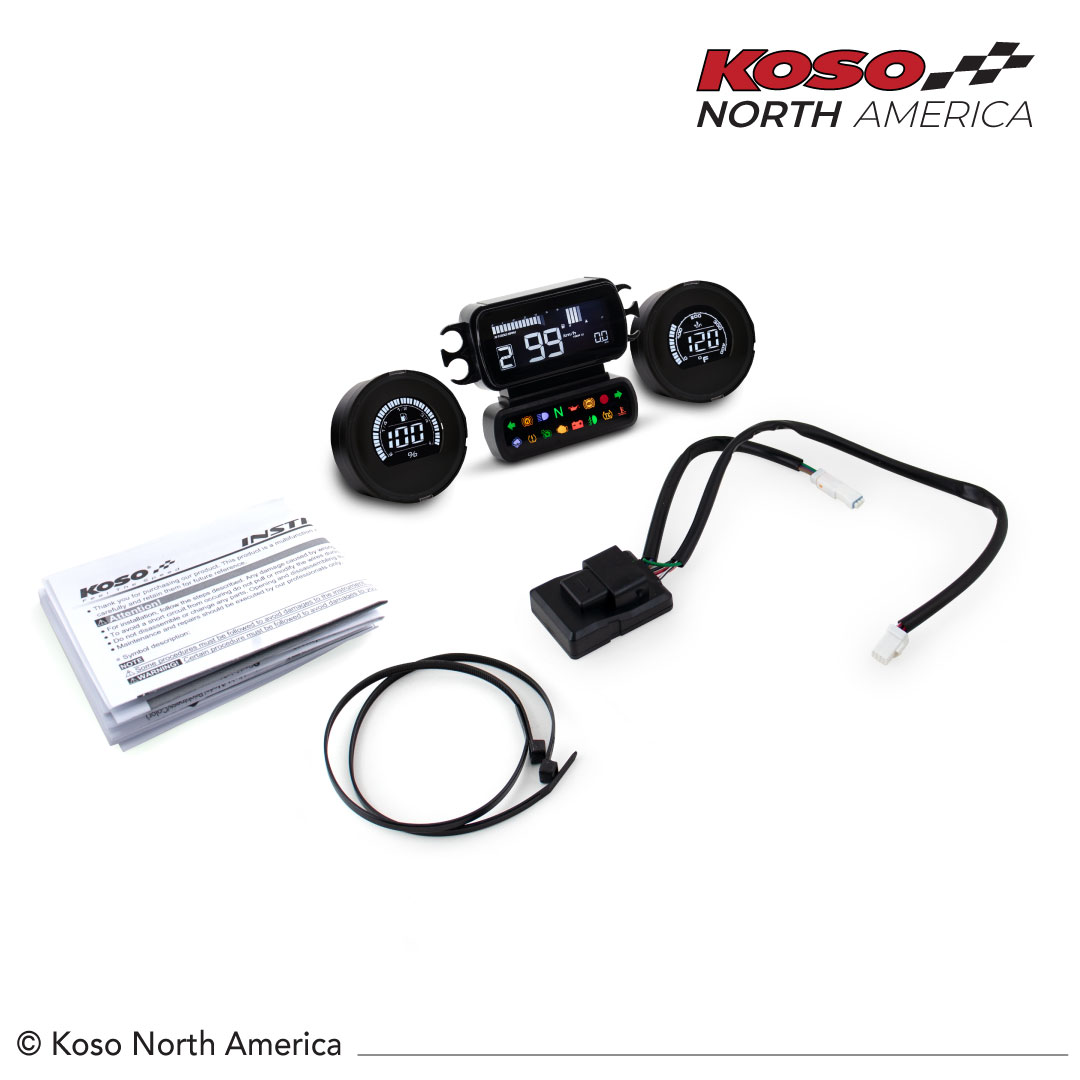

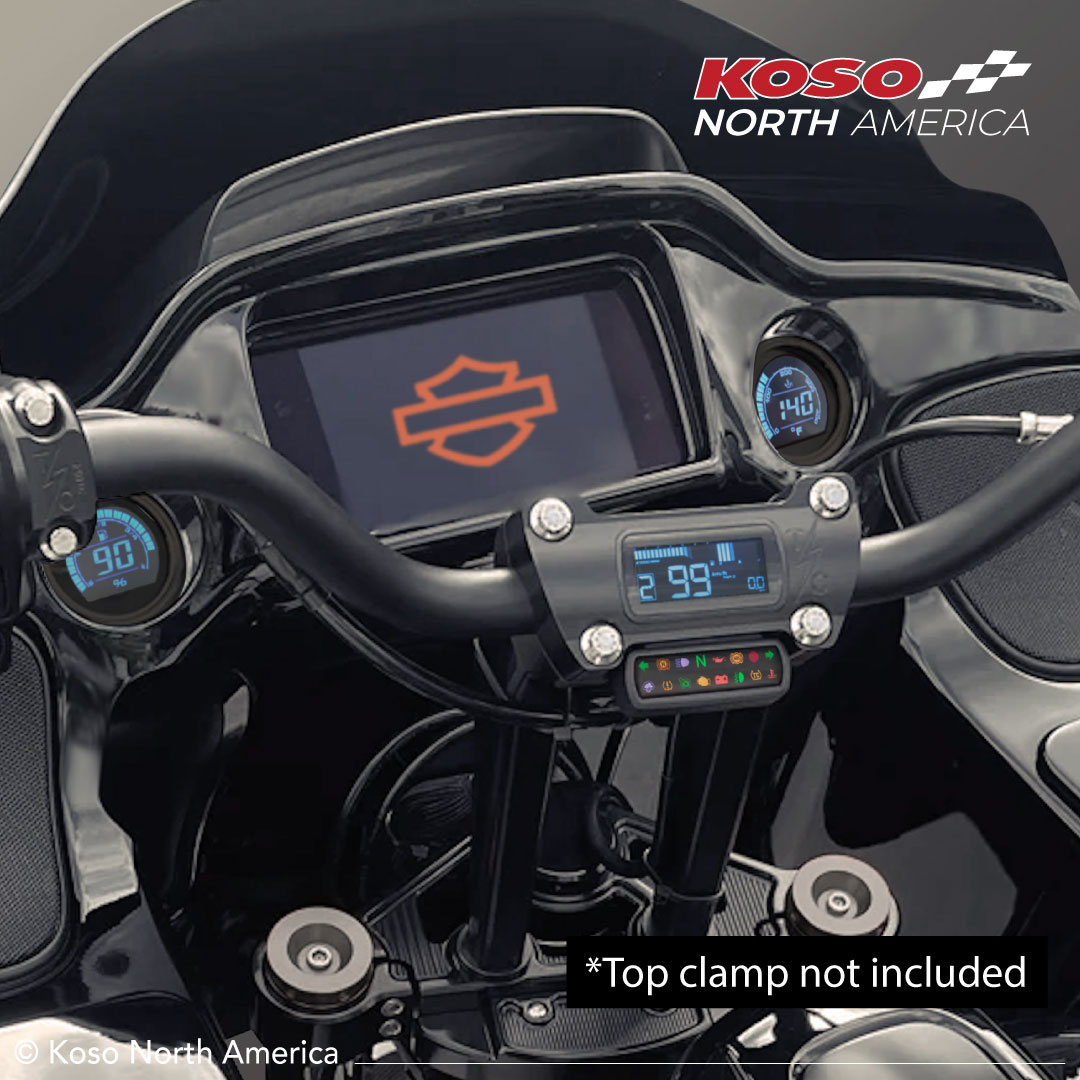

This new plug and play D2 gauge kit for Baggers now comes with the fuel level & engine temperature meters, giving a unique look and experience to your motorcycle.

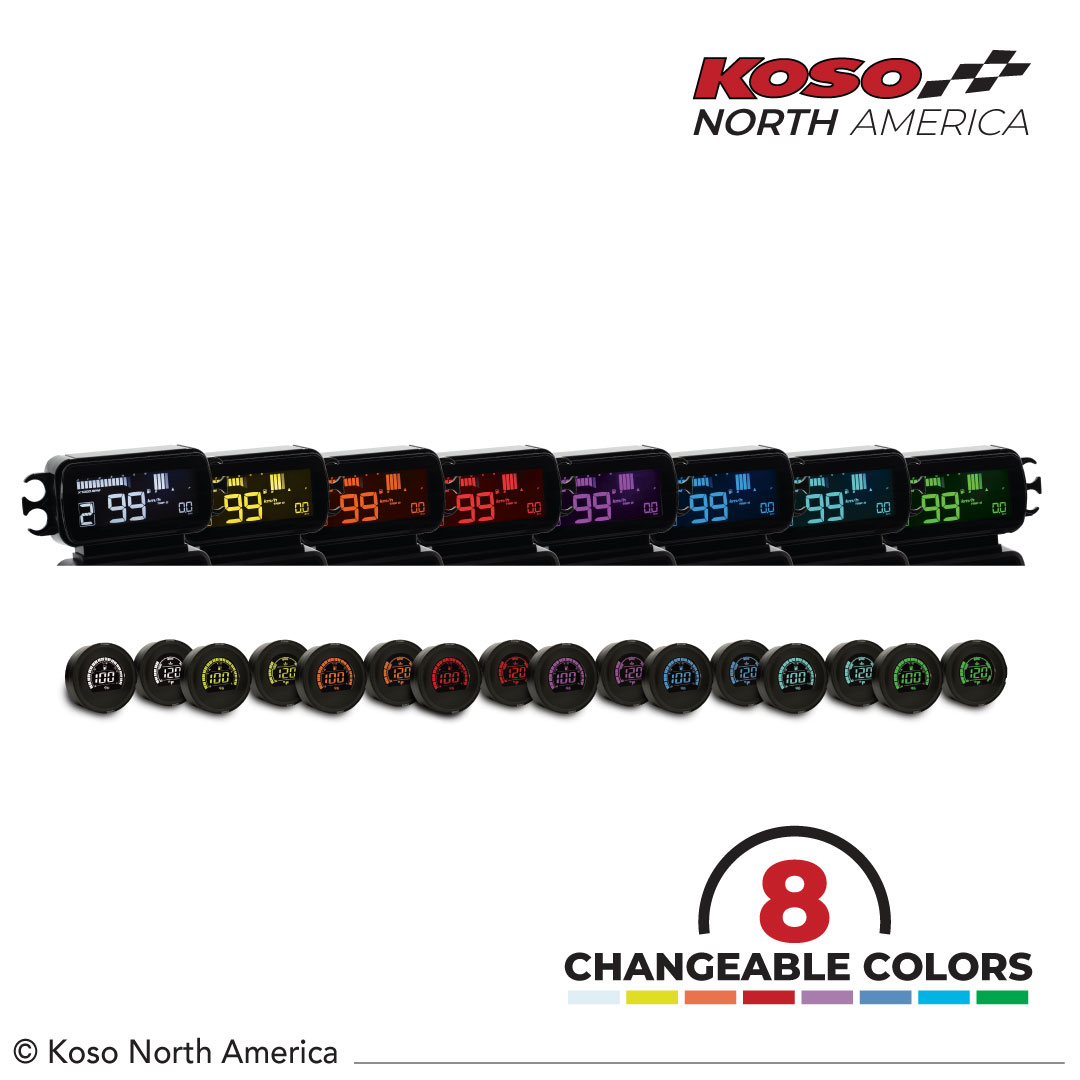

It is also equipped with an 8-color changeable LCD display and features vital readings such as engine temperature, battery voltage, tire pressure, gear indicator and a complete system of indicator lights to monitor your bike’s vital signs. This gauge will fit directly into the stock harness and works with your bike’s CANBUS system.
*To access settings on CVO models, you must turn ON the run/stop switch so that the bike will not turn off. Then you can make your adjustments to the settings on the gauge.
**If you already own the D2 gauge for Baggers (BA080030), you can purchase the gauge kit part# BA080051 as an add-on to your gauge. (Includes fuel level, engine temp meter & adapter harness.)
Specifications
(R= Range U=Unit)
- Backlight color
R: white, red, orange, yellow, blue, light blue, purple, green - Engine temperature
R: -38 ~ 572 °F (-39 ~ 300 °C) - Backlight brightness
R: 1/5 (darkest) ~ 5/5 (brightest) - Fuel Meter
R: 10 levels - Operating voltage
DC 12 V - Operating temperature
-20 ~ 85 °C - Storage temperature
-30 ~ 90 °C - Specifications
JIS D 0203 (S2)
